OrigenAE Technology

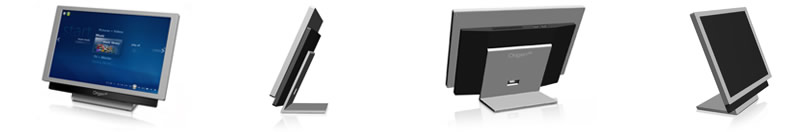

The Origen T12 is the first touch controller of its kind that combines functionality and lifestyle design, bringing the ease of media center touch screen operation effortlessly into your living environment. No longer are you limited by the form or location of your media center.

The T12’s unique ‘umbilical’ cable connection, carrying power, VGA, USB and IR signals, allows for touch control where you need it most while maintaining a clutter free installation. An optional wall mount bracket and umbilical extender accessories, increase versatility and further broadens the applications and locations in which the T12 can be used.

At just 26mm thick, the all aluminium sand blasted exterior houses an anti-glare touch panel and 12.1 inch LCD screen with full HD resolution support. The built in IR sensor can connect to an existing IR controller, meaning you are not limited by line-of-sight to your media centre PC. Additionally, two USB ports discreetly located on the rear, give you the ability to connect your favorite media devices and interact with them in one convenient location.

- all aluminium construction

- 1920x1080 TFT resolution support

- black and silver sandblast finish

- IR extender (for IR211 & IR221)

- integrated USB HUB with 2 ports

- singal cable connection

- optional wall mount

- optional 10M Extension cable

- compatiable with windows, osx and linux
Download the T12 brochure by clicking the link below
T12 Brochure - PDF 381K

Click Here to use our product finder to help choose the right case for you

external dimensions (WxHxD)

construction materials

ir solution

cable supplied


usb hub

net weight

available colours

tft specification

- 295 x 212 x 105mm (with stand)

- all aluminium construction

- ir receiver compatible with IR221

- 5 meter umbilical

- PCI bracket with VGA, USB, IR and

- 2 external usb 2 ports

- 2.2kg

- black & silver combination

- 12.1 " screen size
- 16:10 ratio
- 1920 x 1080 max resolution
- 1280 x 800 native resolution
- 1 x svga input
- 12v dc input
- 9w power consumption

- click here to see a complete list of
supported resolutions


Please visit our support pages for downloads. Alternatively Click Here to be taken directly to T12 related downloads.

- techpowerup (english) - august 2008
- area dvd (german) - july 2008


all specifications are subject to change without notice
