OrigenAE Technology

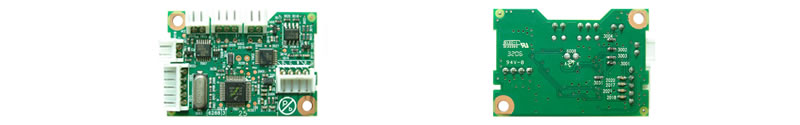

The OrigenAE IR221 uses the new Philips developed Microsoft IR module (OVU4130) for total Windows Vista Media Center functionality. This IR Module integrates seamlessly into the Microsoft Vista operating systems and connects via an internal USB cable. This module also supports the IR Blasting feature and includes the external IR transmitters.

- IR transceiver fully dedicated for Microsoft
Windows Vista
- fits S21T, S16T, S16V, S14V, S10V
- Incorporates Microsoft recommended
RC6 IR protocol
- Resume from standby (S1, S3, S4*, S5*
- Supports 2 independent IR emitters
- Microsoft RLC structure compliant

* With compatible system board
Download the IR221 brochure by clicking the link below
IR221 Brochure - PDF 333K

Click Here
to use our product finder to help choose the right case for you



software support

power requirements

power connectors

display type

interface type

software supplied

ir range

remote supplied

- 50.5mm X 35.5mm X 8mm

- Vista (Media Center)

- 5V (USB Powered)

- none

- none

- usb header

- none (Vista built in)

- 10m (max)

- philips rc197 remote (Kit only)


Please visit our support pages for downloads. Alternatively Click Here to be taken directly to IR221 related downloads.

all specifications are subject to change without notice
