OrigenAE Technology

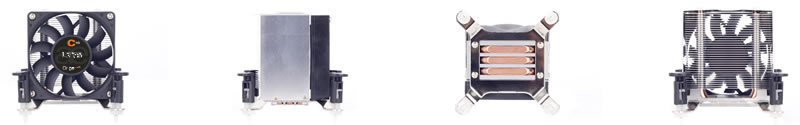

The OrigenAE C10 is a low profile CPU cooler designed to fit perfectly inside the OrigenAE S10V and similar low profile chassis. Not only has the height been matched to the physical dimensions, but the airflow direction has been designed to work in harmony with the cross flow cooling of the chassis.

To achieve a high size to cooling ration we have adopted the use of HDT technology (Heat-Pipe Direct Touch) and the 70mm 4-pin fan offers a perfect balance or rpm and dB range.

The C10 is currently available for socket 775 and is fitted with a push pin retention system.

- HDT Technology
- Optimised fin shape design
- 3 x 6mm high performance heat pipes
- 70mm 4 pin Fan
- Perfect match for S10V & low profile chassis
- Light weight
- Easy installation
- Model C10-L755 Compatible with the
following socket 775 CPU's:
Core™2 Extreme / Core™2 Quad / Core™2
Duo / Pentium® Extreme Edition /
Pentium® D / Celeron® D
Download the C10 brochure by clicking the link below
C10 Brochure - PDF 184K

Click Here to use our product finder to help choose the right case for you

dimensions (W x D x H)


thermal resistance

heatpipe technology

fan specification

mounting system

thermal paste

net weight

available colours

- 70mm X 66mm X 79mm

- copper / aluminium

- 0.19 c/w

- 3 x 6mm using HTD

- 70 x 70 x 15mm
- 12V DC
- 0.17A
- 3000rpm (max)
- 50,000 hrs mtbf
- 30dB (max)
- rifle bearing

- socket 775

- SC-102

- 252g (with fan)

- silver (black fan)


Please visit our support pages for downloads. Alternatively Click Here to be taken directly to C10 related downloads



all specifications are subject to change without notice
